KIISU V4B Starter Kit

Please note that all customs duties, fees, and taxes are payable by the customer.

PRE-ORDER

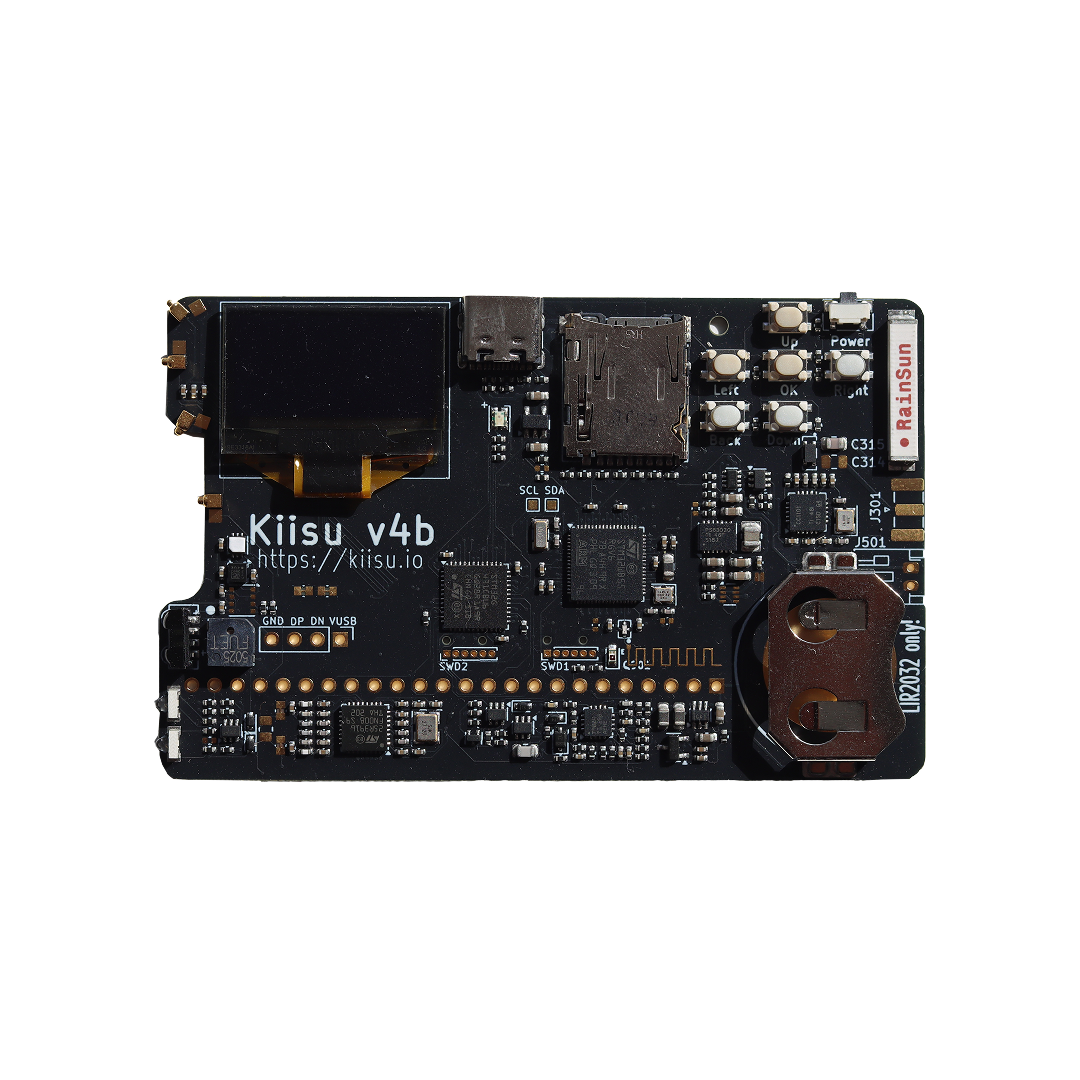

Credit card sized multipurpose IoT development board that is compatible with Flipper Zero firmware(s).

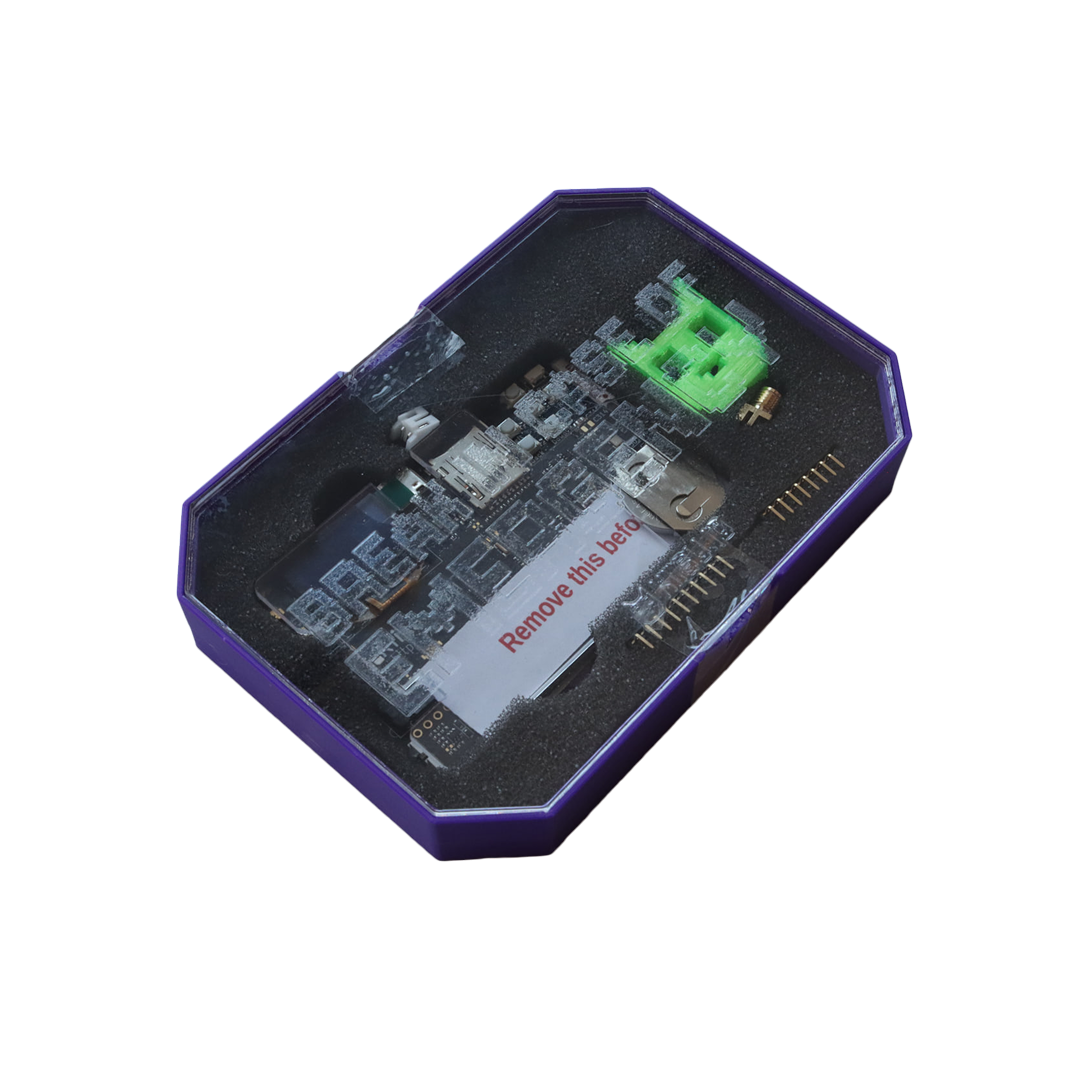

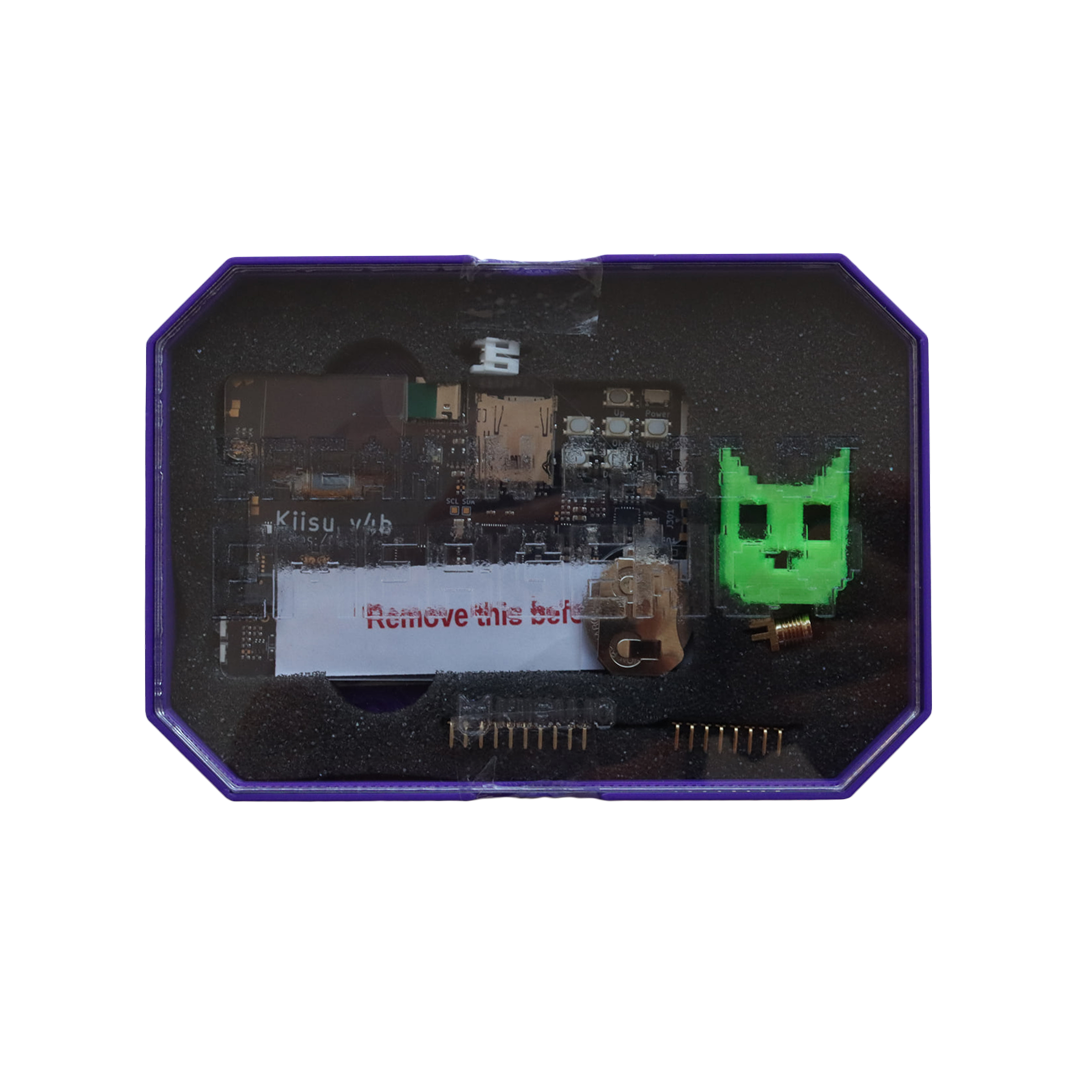

Package Includes:

• KIISU V4B
• 90 Degree Pins (x2)
• SD Card
• Antenna Interface
• KIISU Keychain
• Li-Po Interface

Interfaces:

• SubGhz transceiver CC1101 with ability to install external antenna
• NFC reader and emulator ST25R3916, built-in antenna
• RFID reader and emulator, built-in antenna
• Infrared receiver and transmitter
• GPIO, pin compatible with Flipper Zero
• Bluetooth Low Energy
• USB Type C

Cores:

• Main MCU STM32WB55RGV6 up to 80 MHz
• Aux MCU STM32G431CBU6 up to 170 MHz

Sensors:

• Digital accelerometer and compass LSM303AGR
• Temperature and humidity sensor GXHTC3C
• Ambient light sensor
• Gas sensor measuring relative humidity, barometric pressure, ambient temperature and gas (VOC) BME680 can be installed by user


Power:

• LIR2032 rechargeable
• Primary via USB Type C
